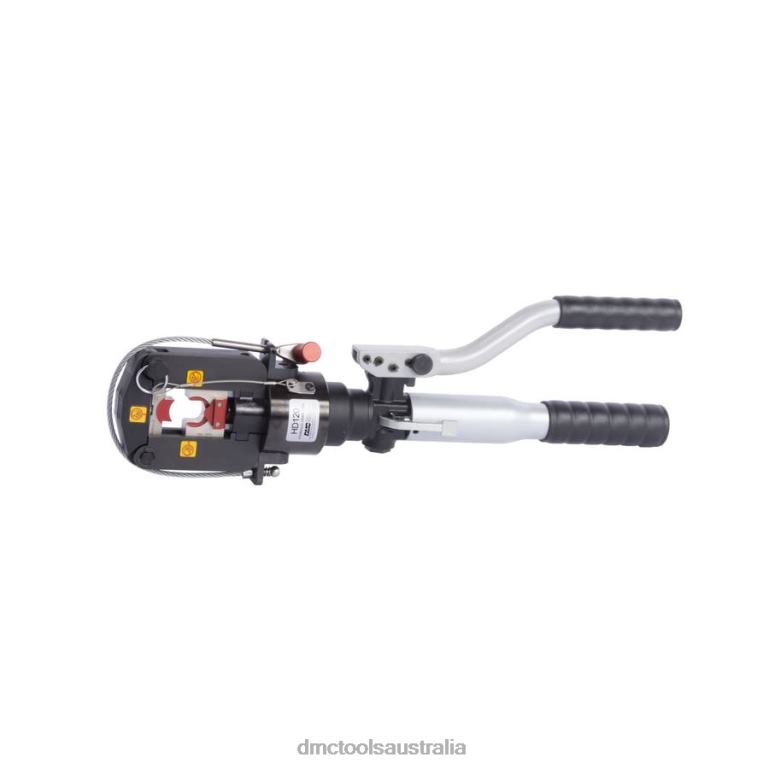

DMC HD120 Large Gage Hydraulic Crimp Tool Facilities 4226H244

The HD120 is a hand-actuated hydraulic crimp tool designed to use interchangeable MS23002-XX dies (for insulated lugs), MS90485-XX dies (for un-insulated lugs) and MS25442-XX dies (for aluminum lugs). This heavy-duty crimper delivers 12 tons of die force necessary to crimp large conductors. The two-stage pump minimizes the number of handle closures needed to complete the crimp and the padded handles provide a comfortable advantage. The tool’s hydraulic pump is filled with biodegradable hydraulic fluid at the factory and does not need to be bled or primed.

The HD120 is a hand-operated hydraulic equivalent to the Mil-Qualified, TBHD1M (MS25441-1) remote hydraulic crimp head. DMC also offers a battery version of this tool, HDE120B. All dies are able to be interchanged throughout these 3 tools.

• 360 degrees rotating head
• Automatic relief valve
• Crimp force: 12 tons
• Length: 21.3 inches
• Weight: 14.6 pounds
• Hydraulic Oil : .1pt (50ml) Biodegradable Hydraulic Fluid
• Crimping Range: 8 AWG to 4/0 AWG
