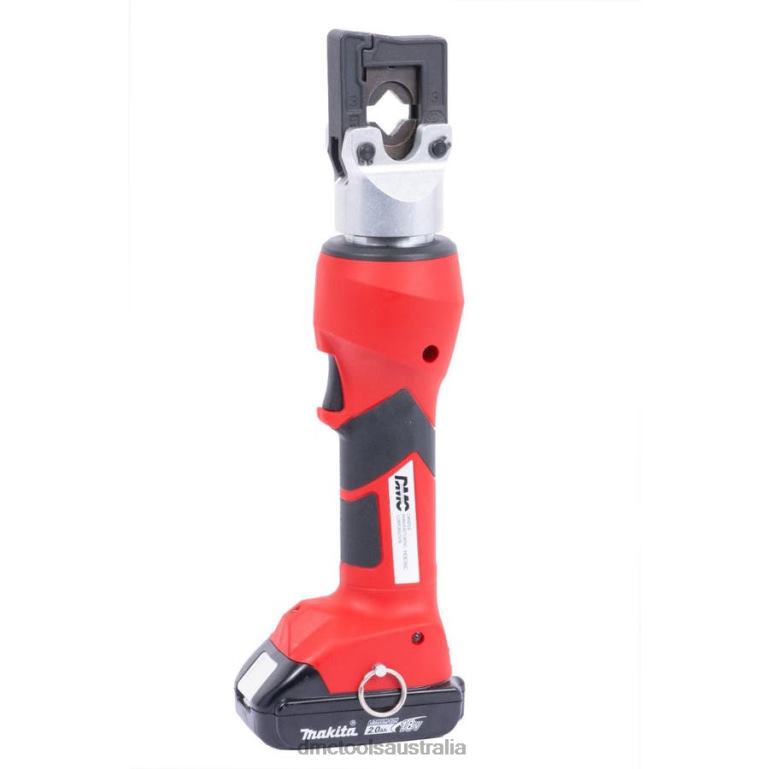

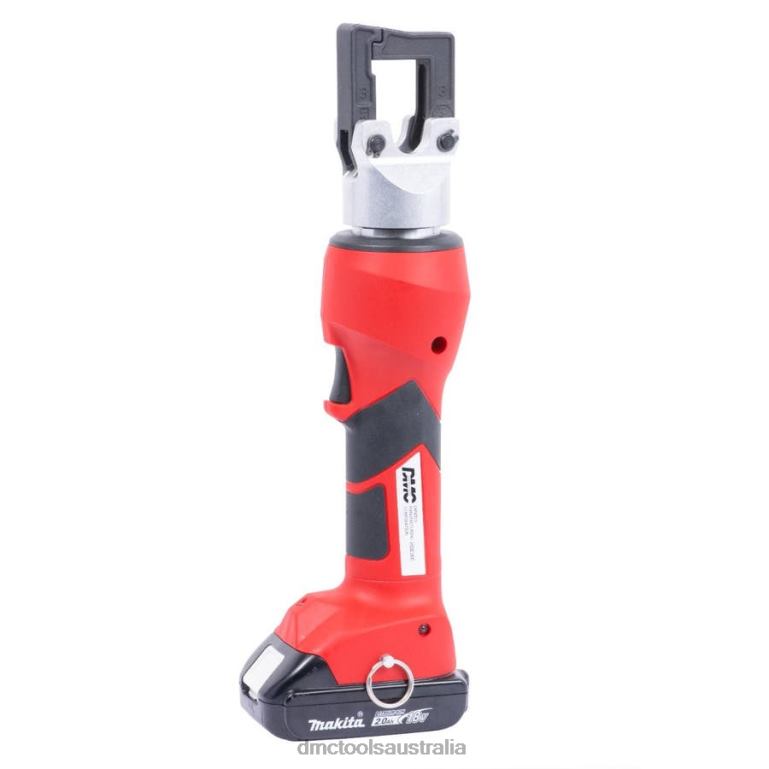

DMC HDE36C 4 Ton Battery-Powered Crimp Tool for Use with HD36 Dies Facilities 4226H8

The HDE36C battery-powered crimp tool is intended to crimp copper and aluminum cable #8 to #0 AWG in many power applications, and .750″ in coaxial hex crimping with DMC “D36″ dies. The HDE36C is equivalent to the HD36 with the added benefits of portable power and next-generation connectivity. Users can track tool performance, users, and projects. Crimp data is viewable in real-time on the LED display or can be downloaded via an app.Features: Bluetooth connectivity Tracks number and quality of crimps Ergonomic design allows one-handed operation Die automatically opens when crimp is complete Die can be released mid-cycle to make adjustments Head rotates 350 LED light illuminates work areaCrimp Capabilities Wire Range: #8 to #0 AWG .750″ (19.05 mm) in Coaxial Hex Max. Crimp Force: 4 tons (35.6 kN) Avg. Crimp Time: 4 seconds Avg. Crimps per Charge: 85 (Approx 200 with extended life batteryThe HDE36C includes: Carrying Case Two 18 VDC, 2.0 Ah, Lithium Ion Batteries One battery chargerLength: 14.4″ in (356mm)Height: 2.9″ in (51mm)Width: 4.4” in (102mm)Mass/Weight (with battery): 4.1 lb (1.8 kg)Hydraulic Oil: Shell Tellus T-15Vibration: 2 (2.5 m/s2)Battery (Part# HDE-LI-B)18 VDC, 2.0 Ah, Lithium IonCharging Time: 22 minutesOptional Extended Life Battery (Part# HDE-LI3-B)18 VDC, 3.0 Ah, Lithium IonCharging Time: 45 minutesVAC Power Adapters120 VAC Part# HDE-120AC-A230 VAC Part# HDE-230AC-A
